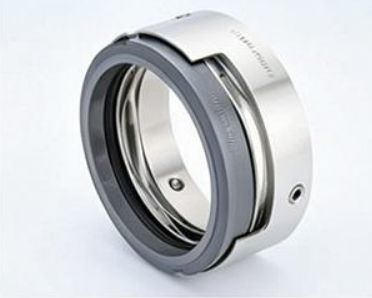

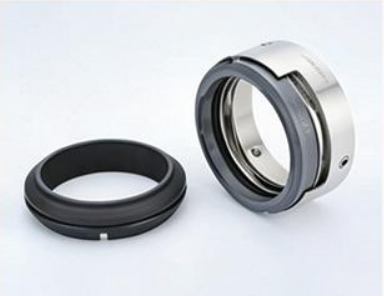

M7N Series Mechanical Seal
The M7N Series is a single-ended, wave spring, unbalanced component mechanical seal with an independent rotary direction and lug drive. This seal features a simple transmission mechanism and offers high versatility for various equipment.
Specification Range:
Available in standard metric sizes to fit various shaft diameters.
Technical Data
Product Specifications
| Parameter | Specification |
|---|---|
| Product Category | Mechanical Sealing Elements |
| Compliance Standards | DIN24960, ISO3069, GB6556, EN12756 |
| Machining Capacity (Max Dia.) | 4000 mm |
| Max Component Length | 12 Meters |
| Max Component Weight | 20 Tons |
| Surface Treatment | Metal Arc Spray (up to 3 mm thickness) |
| Quality Documentation | Material Test Certificate (MTC) provided |
| Customization | Per engineering drawing / customer requirements |
Specifications are indicative. Final parameters subject to engineering drawing review and customer confirmation.
Application
Usage & Notes
The wave spring structure makes this seal highly suitable for use with high-concentration medias in chemical flow pumps and industrial rotating equipment.
